Residential lift platform

Complete range of hydraulic lift platforms, also with automatic manoeuvring.
More about
Level
Level
Level
Level
Level
Level
Level
Level
Level
Level
Level
Level

Level

Designed to overcome architectural barriers and make life easier for the elderly or disabled.

The Level range of lift platforms is suitable for single-family homes and multi-storey public buildings. Available with automatic (Plus and MATIC version) or dead man operation (MAP version).

Applications
Detached houses
Restaurant
Refurbishments
Offices
Shops
Warehouses
Level Map

With automatic manoeuvring at landings and “dead man” with hold-to-run button pressure in the car, hinged landing doors and without car doors.

Level Plus and Level Matic

With automatic manoeuvring at landings and in car, hinged landing doors and folding car doors.

Features

Hydraulic traction ensures excellent performance and quiet operation; the lift shunt manoeuvre offers additional safety guarantees for users requiring special precautions such as the elderly or people with disabilities.

Wide range of models with capacity up to 500 kg. Available with one or more car entrances, equipped with single or automatic hinged landing doors for the “Matic” version that guarantee safety and ease of insertion in any type of furniture.

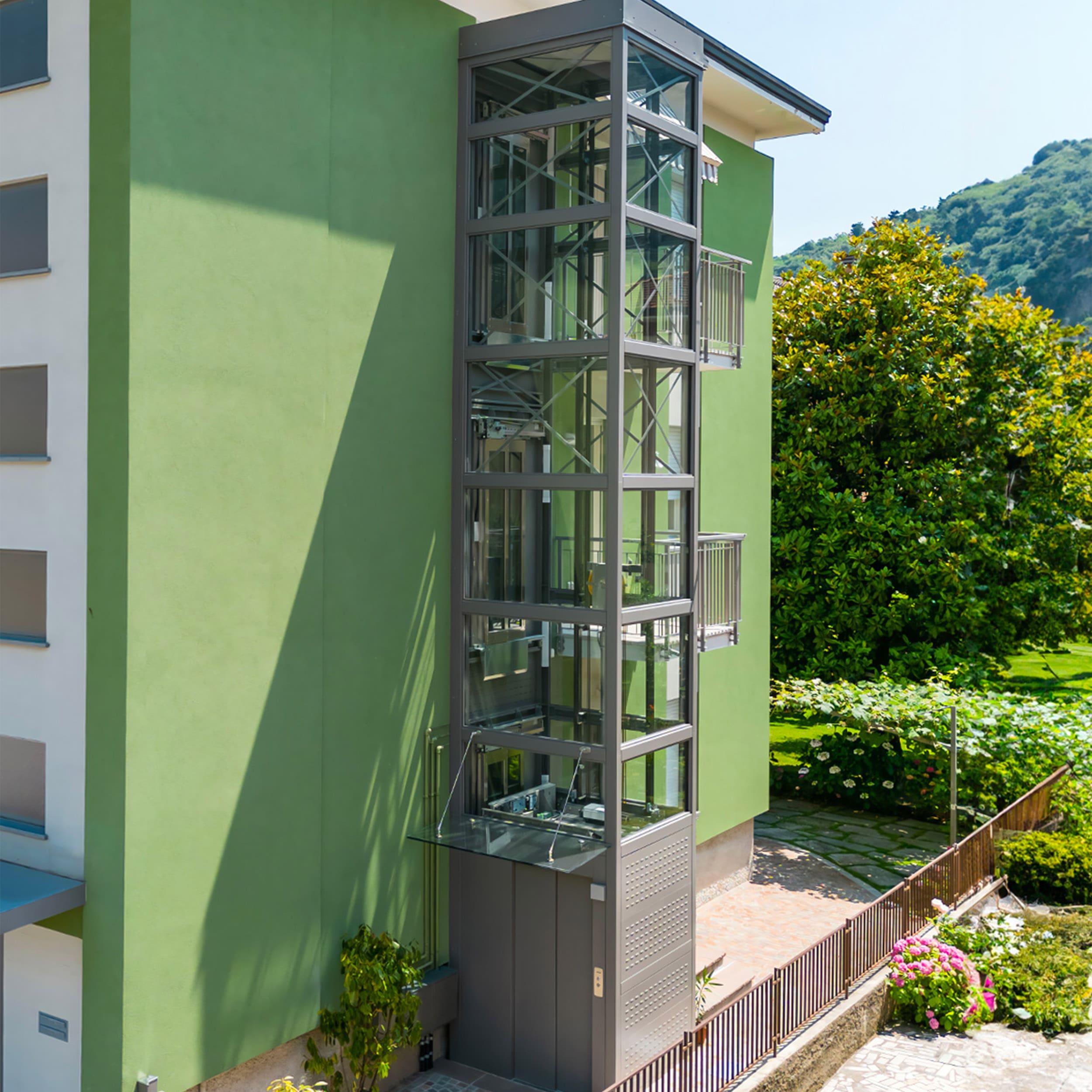

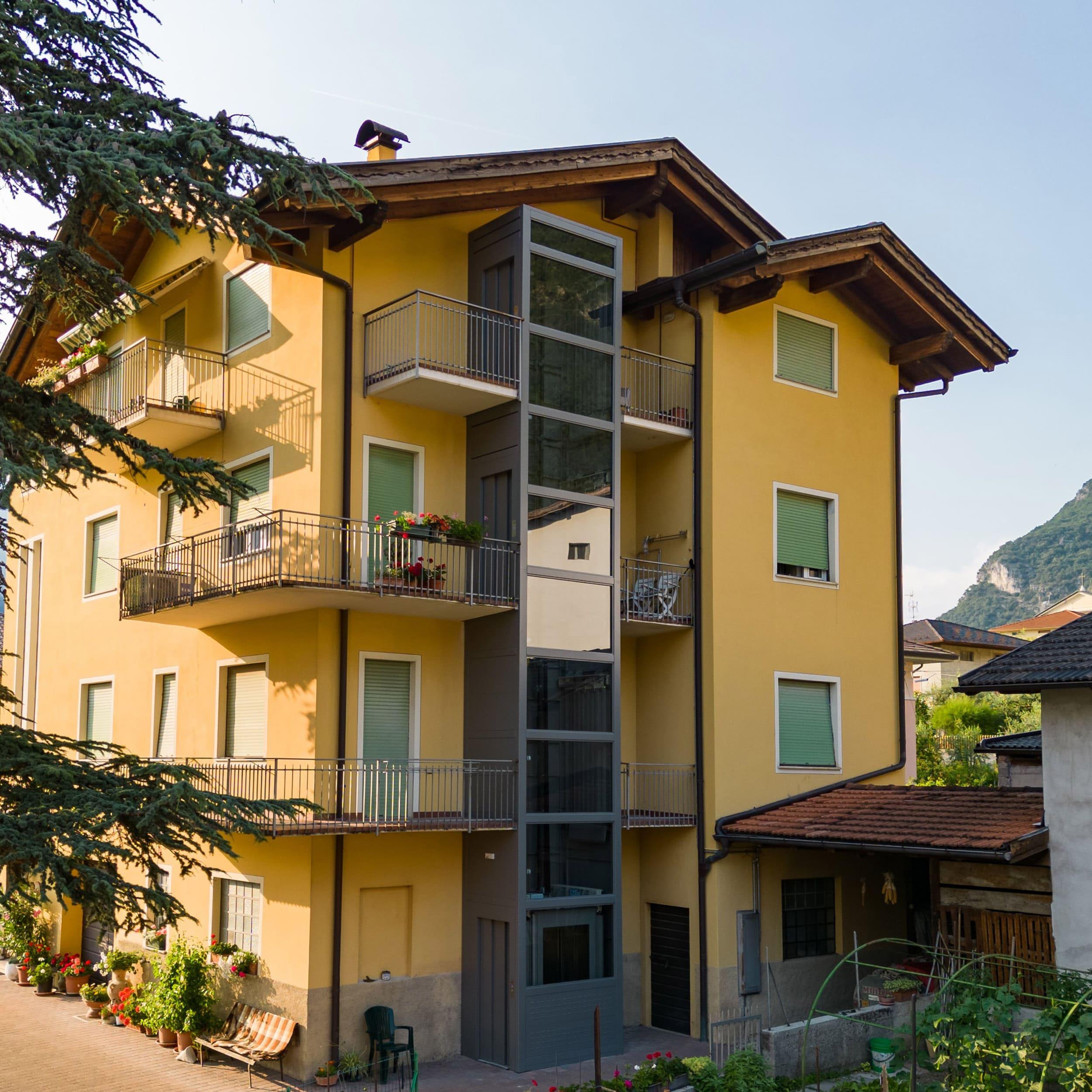

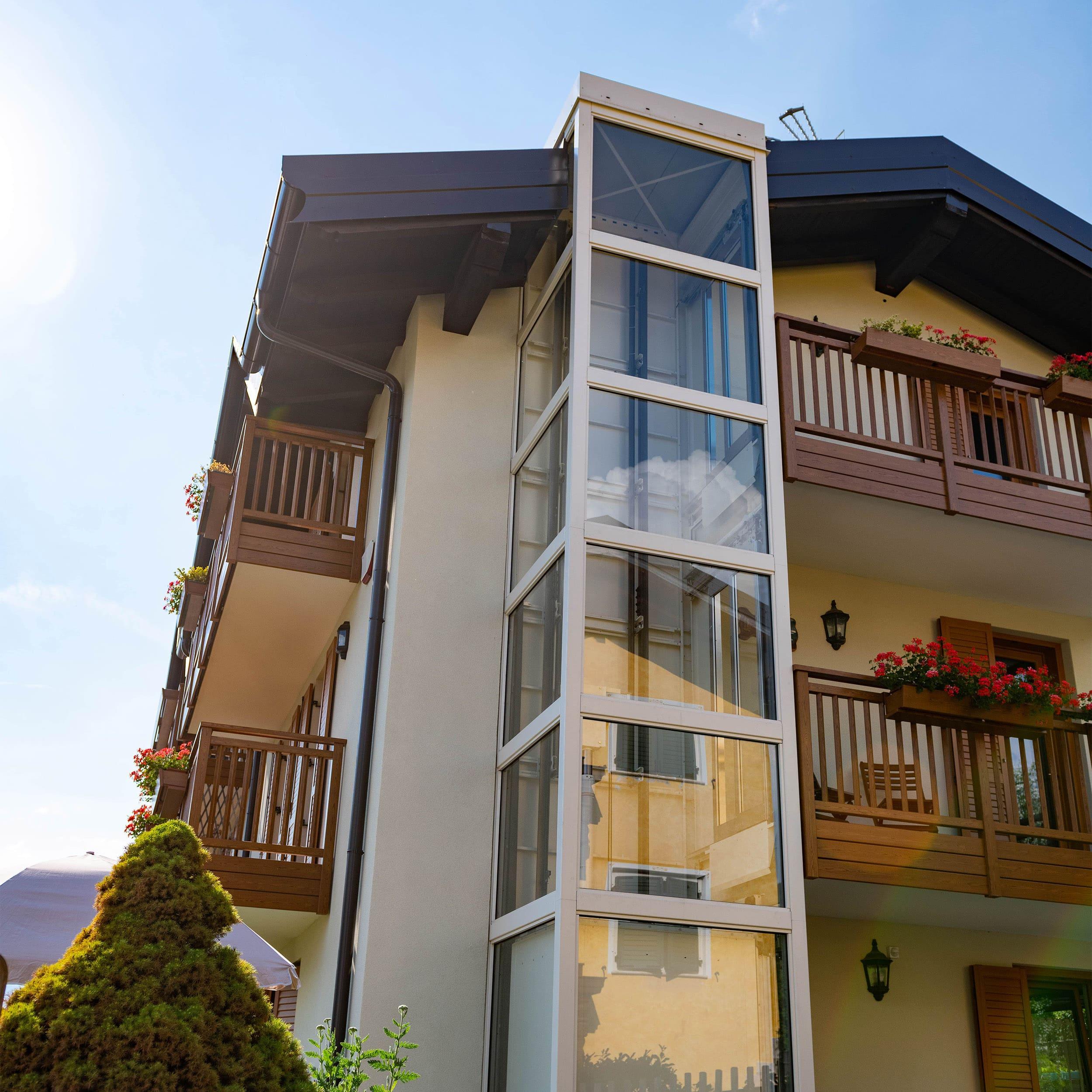

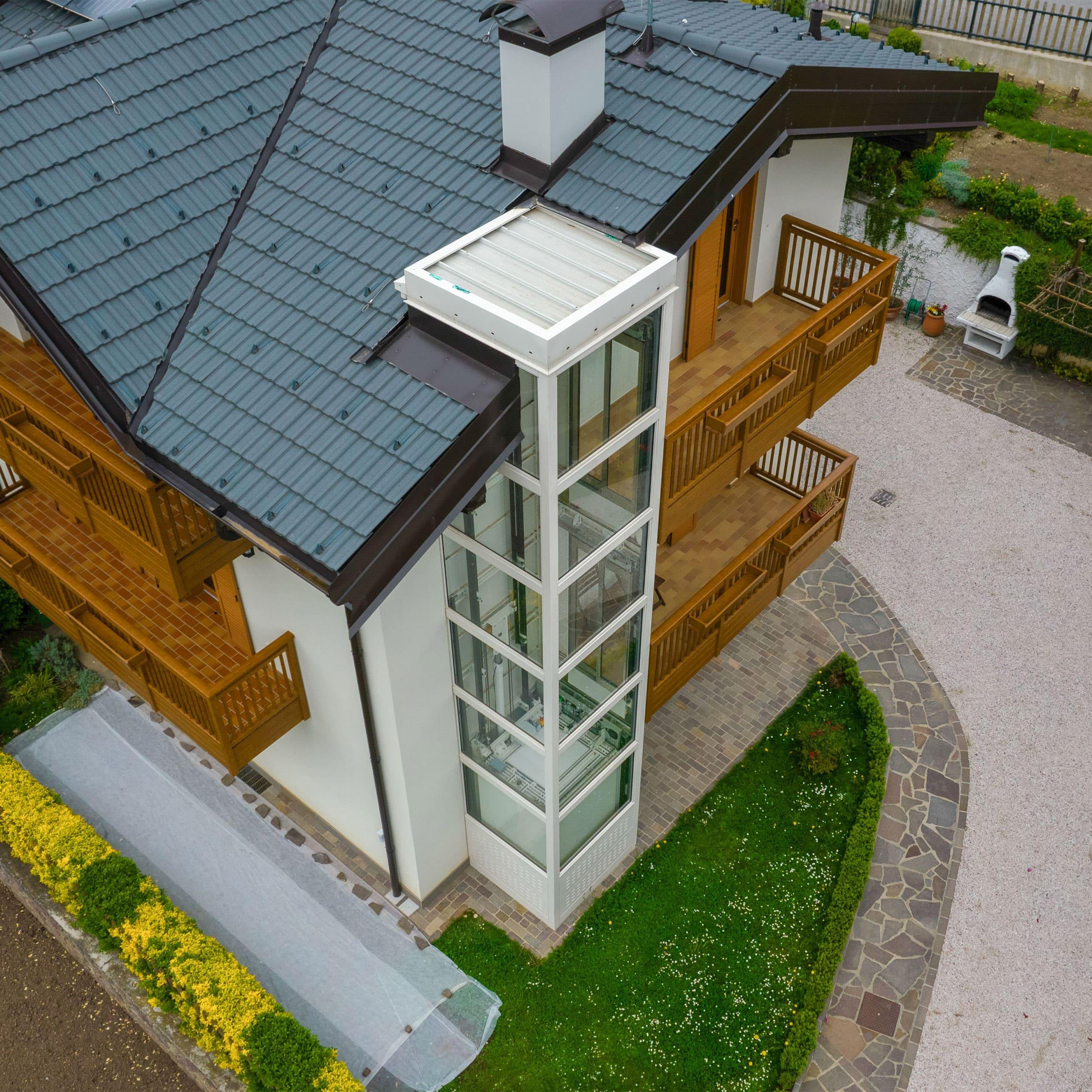

Optional support structure of modular type that allows rapid assembly and reduced masonry work and is equipped with a roof enclosure for both indoor and outdoor use; oven-fire painted (RAL range colours) on a galvanised base for outdoor use for long service life, it can be clad with glass, sheet metal or insulated panels.

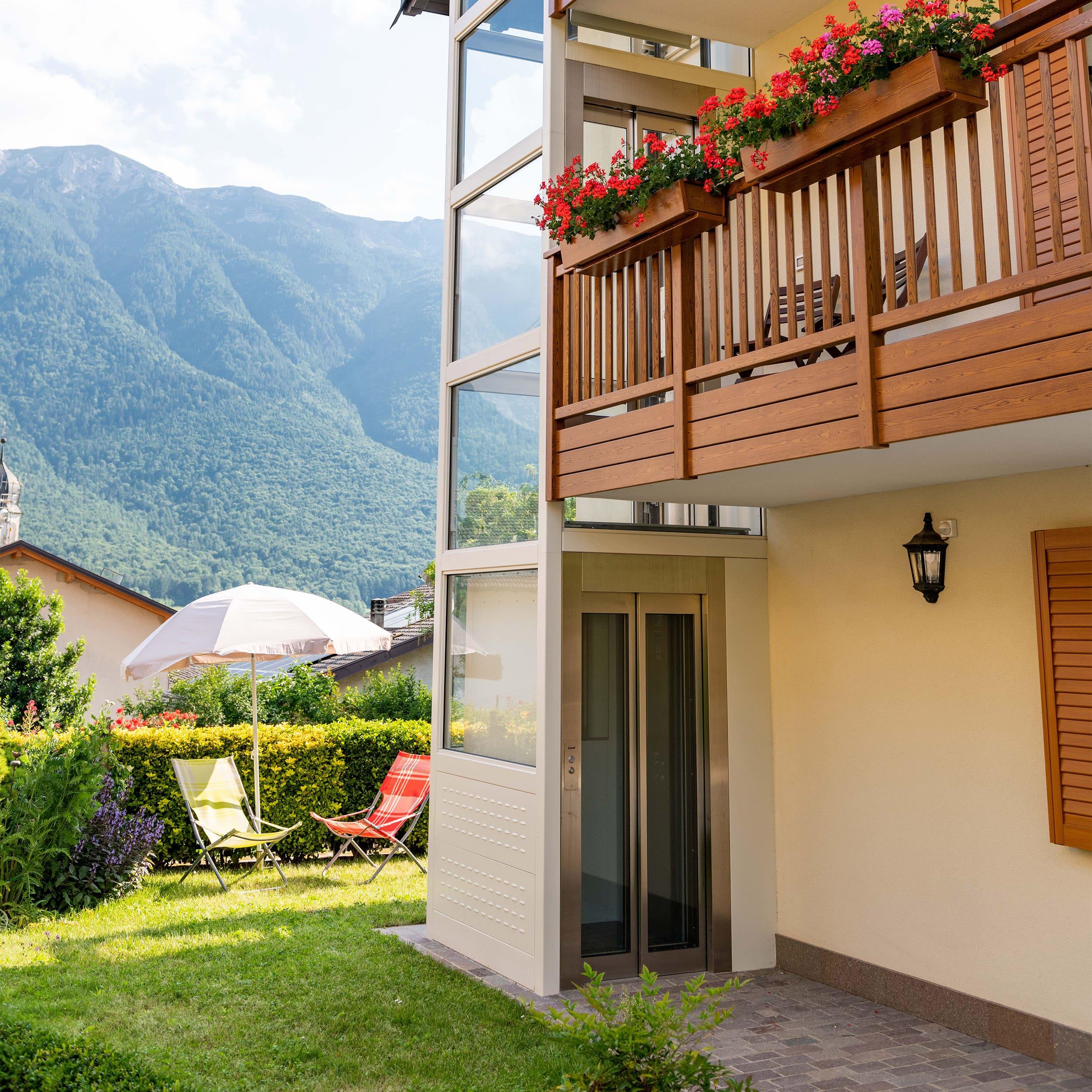

The extremely small dimensions of the system and the optional support structure make the platform easily adaptable inside existing shafts or outside buildings.

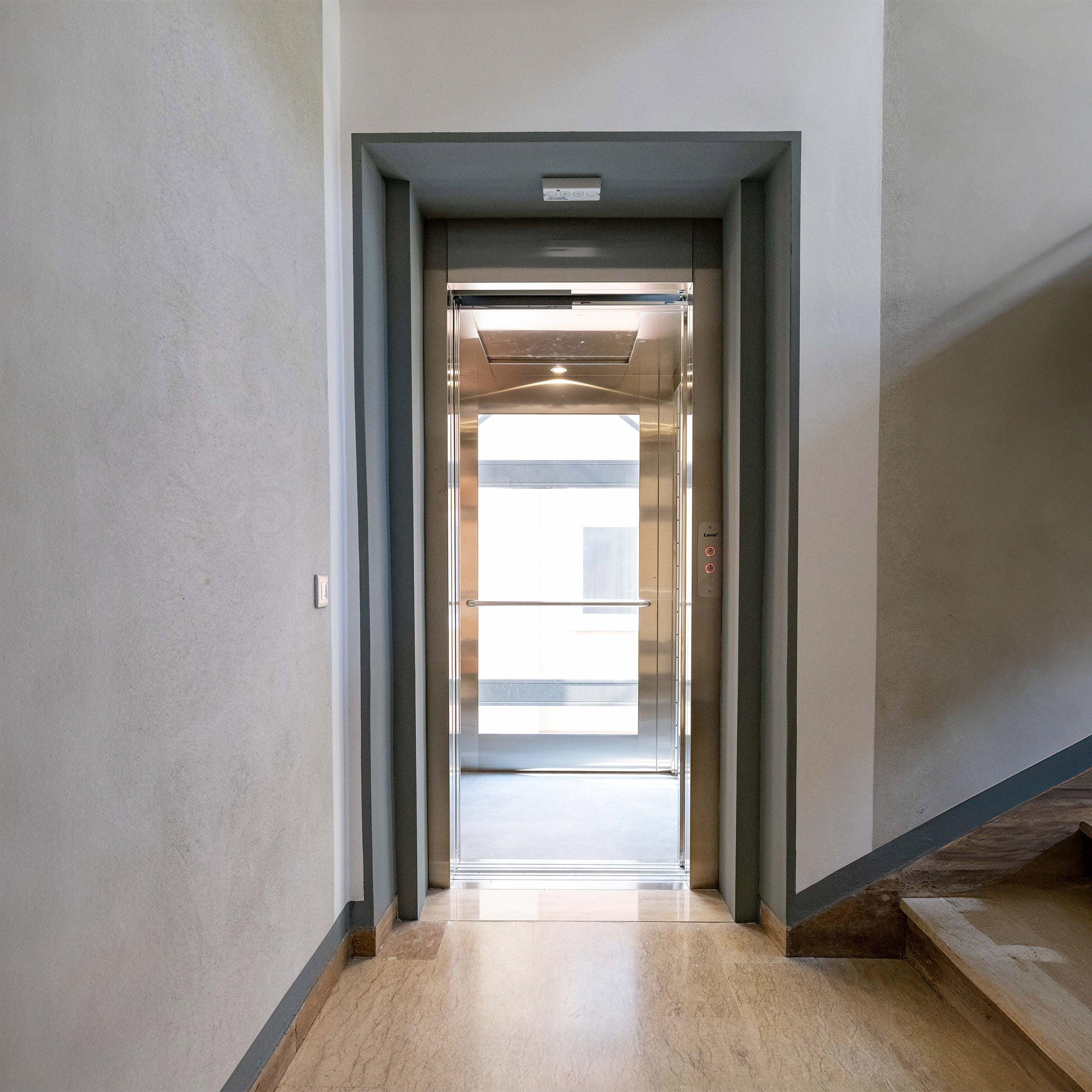

Enclosed with plastic-coated sheet metal walls in various colours or stainless steel finishes, non-slip rubber floor cladding in various colours, ceiling with inspection hatch, timed lighting and emergency light. Full-height safety light curtains at each car entrance.

Manual single hinged or automatic landing doors with central or telescopic wings, also available in EI fire resistance class; oven-fire painted (RAL range colours) or plastic-coated sheet metal in various colours or stainless steel. Automatic car doors for “Plus” and “Matic” versions in plastic-coated sheet metal in various colours or stainless steel.

Push button panel at landings with stainless steel plate, automatic “braille” type call button, car at floor and busy light indicator.

Car push button panel with stainless steel vertical panel, “braille” type floor selection buttons with hold-to-run pressure operation for “Map” version, automatic for “Plus” and “Matic” and alarm button with landline or GSM remote control device.

BANNER CATALOGHI
Level catalogue
Don't miss the opportunity to find the perfect solution for your needs.

Versatile, functional, simple and residential. Download the catalogue and start exploring the Level model range.

Level structura
Technical data
Traction
Hydraulics with control unit installed near the shaft
Capacity
250-350-500 kg (optional for MAP line)
Passengers
Up to 6 persons in relation to capacity
Installation
Wall mounting or support structure (optional)
Manoeuvre
Level MAP: "dead man" manoeuvre in the car and automatic at the landing.
Level Plus and MATIC: automatic type manoeuvring both in the car and at the landing.
Stops
Up to 8 in standard configurations
Travel
Up to 17,200 mm (variable depending on model)
Headroom min.
2500 mm - 2600 mm for Level MATIC
Pit or ramp min
100 - 150 mm depending on line and models
Car speed
0.10 - 0.15 m/sec. depending on line and models
Power supply
220V single-phase / Δ230V - Ү400V three-phase 50/60 Hz
Motor power
1.5 - 2.2 kW depending on line and models
Options

2-speed control unit; Anchor-free headroom; Single-sided structure fixing.

Safety in detail

Already in the basic version, all the safety features required by the regulations are applied, with special attention paid to the disabled and the elderly.

  • Emergency return (downhill) to any floor or floor 0 with door opening (Matic line only)
  • Emergency light in case of power failure
  • Safety gear device
  • Emergency manual recovery device (hand pump)
  • Door and lock control devices
  • Speed limiter block valve
  • Floor levelling: the car is automatically levelled to floor level, thus eliminating steps when entering the car
  • Travelling comfort: has been optimised with precise deceleration speeds at floors
  • Full-height safety light curtain to protect the car entrance (MAP line only).
Quality and safety

Level is a product with a Type Examination Certificate issued by the notified body IMQ and complies with the Machinery Directive 2006/42/EC. In accordance with the requirements of the various standards, components are also supplied to ensure the safety and compliance of the systems with the applicable regulations.
